Centerless grinding is a machining process that uses abrasive cutting to remove material from a workpiece. Centerless grinding differs from centered grinding operations in that no spindle or fixture is used to locate and secure the workpiece; the workpiece is secured between two rotary grinding wheels, and the speed of their rotation relative to each other determines the rate at which material is removed from the workpiece.
| Model | Unit | S-12 | S-18 | S-20 |
| Grinding Range(dia.) | mm | 1-30 | 2-50 | 2-40 |
| Grinding wheel size(dia.*W*H) | mm | 305*150*120 | 455*205*228.6 | 510*205*304.8 |
| Regulating wheel size(dia.*W*H) | mm | 205*150*90 | 255*205*111.2 | 305*205*127 |
| Grinding wheel speed | m/min | 2000 | 1500 | 1350 |
| Regulating wheel speed (Servo) | R.P.M | 21-300(7steps) | 21-308(10steps) | 21-308(10steps) |
| Grinding wheel motor | HP | 10 | 15 | 20 |
| Regulating wheel motor | HP | 1 | 2 | 3 |
| Hydraulic pump motor | HP | 1 | 1 | 1 |
| Coolant pump motor | HP | 1/8 | 1/4 | 1/4 |
| Upper slide feed graduation | mm | 0.05 | 0.05 | 0.05 |
| Upper slide micro feed graduation | mm | 0.001 | 0.001 | 0.001 |
| Lower slide feed graduation | mm | 0.05 | 0.05 | 0.05 |
| Lower slide micro feed graduation | mm | 0.001 | 0.001 | 0.001 |
| Dressing device graduation | mm | 0.01 | 0.01 | 0.01 |
| Regulating wheel tile angle | deg. | ±5 | ±5 | ±5 |
| Regulating wheel swivel angle | deg. | ±5 | ±5 | ±5 |
| Machine Dimensions | mm | 1900*1550*1420 | 2450*2050*1600 | 2650*2150*1600 |
| Machine Weight | kgs | 1550 | 3200 | 4000 |

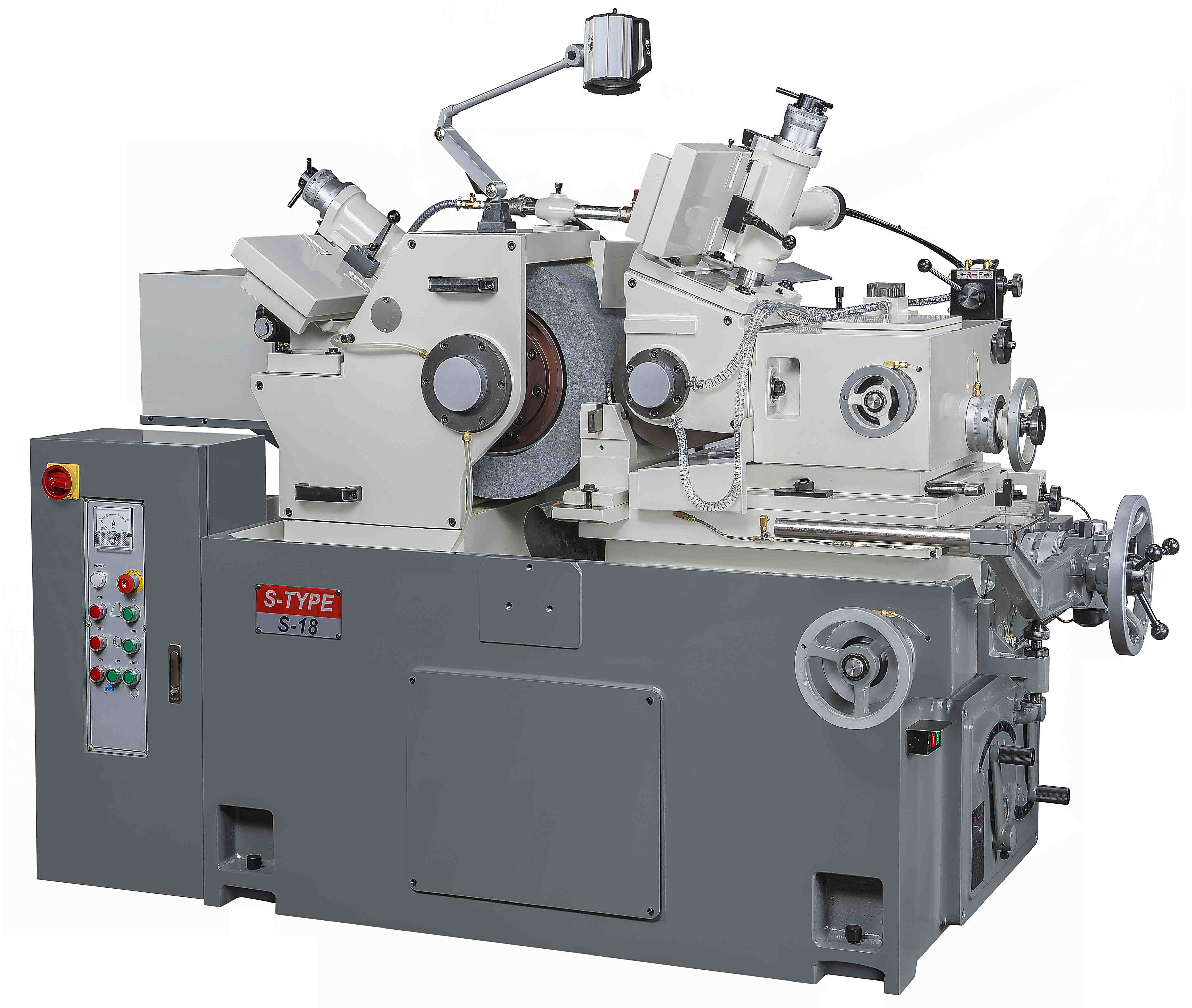

Image:
