SKU: centerless004
English
| Model | Unit | S-12CNC | S-18CNC | S-20CNC |
| Controller | ||||
| MITSUBISHI | ||||
| FANAC | ||||
| CAPACITY | ||||
| Grinding Range(dia.) | mm | 1-30 | 2-50 | 2-40 |
| Grinding wheel size(dia.*W*H) | mm | 305*150*120 | 455*205*228.6 | 510*205*304.8 |
| Regulating wheel size(dia.*W*H) | mm | 205*150*90 | 255*205*111.2 | 305*205*127 |
| SPINDLD SPEEN | ||||
| Grinding wheel speed | m/min | 2000 | 1500 | 1350 |
| Regulating wheel speed (Servo) | R.P.M | 0-308 | 0-308 | 0-308 |
| DRIVEN MOTORS | ||||
| Grinding wheel motor | HP | 10 | 15 | 20 |
| Regulating wheel motor | HP | 1 | 2 | 3 |
| Hydraulic pump motor | HP | 1 | 1 | 1 |
| Coolant pump motor | HP | 1/8 | 1/4 | 1/4 |
| FEED SLIDE | ||||
| Upper slide feed graduation | mm | 0.05 | 0.05 | 0.05 |
| Upper slide micro feed graduation | mm | 0.001 | 0.001 | 0.001 |
| Lower slide feed graduation | mm | 0.05 | 0.05 | 0.05 |
| Lower slide micro feed graduation | mm | 0.001 | 0.001 | 0.001 |
| Dressing device graduation | mm | 0.01 | 0.01 | 0.01 |
| Regulating wheel tile angle | deg. | ±5 | ±5 | ±5 |
| Regulating wheel swivel angle | deg. | ±5 | ±5 | ±5 |
| MACHINE LAYOUT | ||||
| Machine Dimensions | mm | 1900*1550*1420 | 2450*2050*1600 | 2650*2150*1600 |
| Machine Weight | kgs | 1550 | 3200 | 4000 |

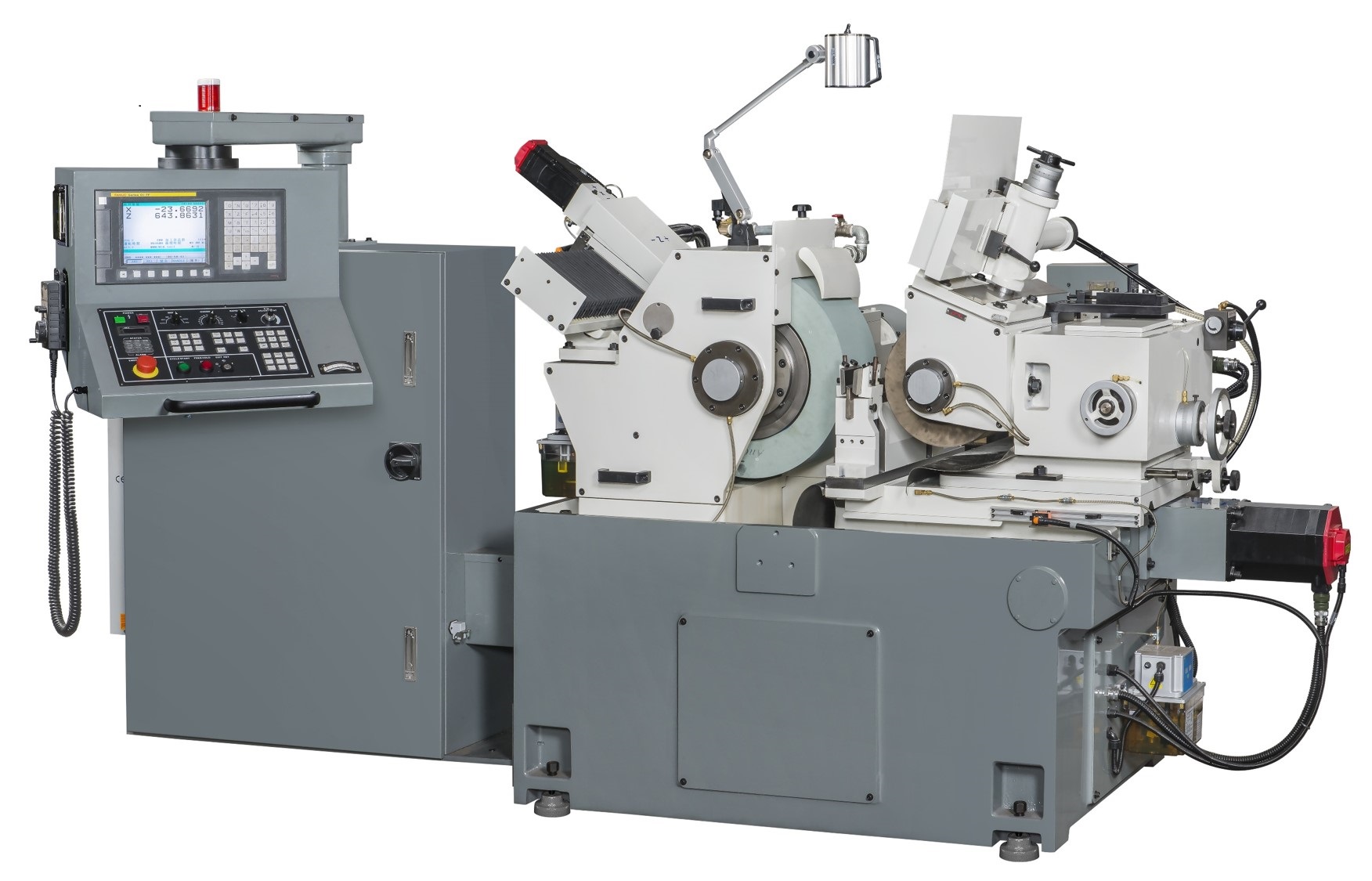

Image:
