12 NC1 with vibration hopper and Cross type 4 clamping

Submitted by admin on Fri, 04/12/2019 - 13:53
English
SKU: AI004

 Workpiece Features:

  1. Both sides grinding and the dia is 5mm, L:4mm
  2. Concentricity is below 0.002mm and size should be controlled under 0.004mm

Customer Request:

  1. All automation, engineers only put the workpiece in Hopper.
  2. The Cycle time is 15 sec. and two wrokpieces should be finished in one feeding.

Solution:

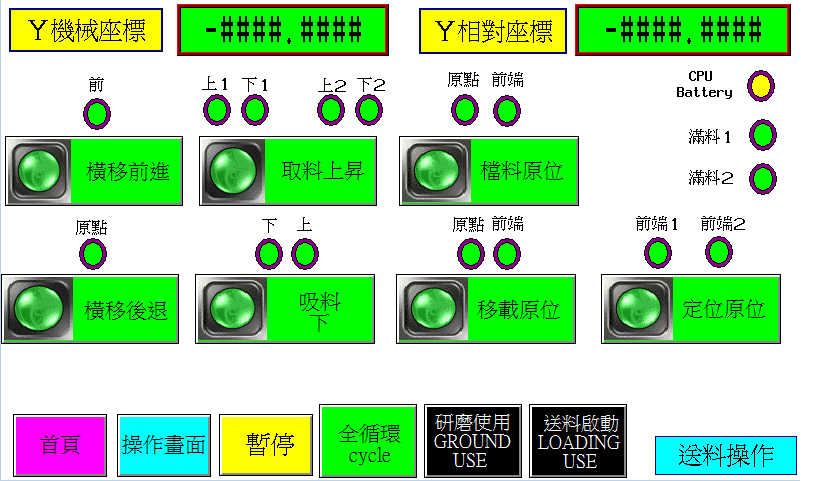

  1. Dialogue NC1
  2. Vibration Hopper
  3. Cross Type automation (4 clamps)
  4. Profile Blade
Image:
Catalog:
Centerless Grinder(Infeed Automation)
